Event Screen Data

Below are a series of tables illustrating key product features for Harkness' event screen surfaces

  Front or Rear Lighting Conditions Multiple Projectors Short Throw < 1:1 Long Throw > 1:1 Gain Transmittance
Translite White Front/Rear Dark or Low 0.50 0.45
Translite Cream Front/Rear Dark or Low 0.50 0.75
Translite Blue Rear Dark or Low 0.55 0.25
Translite Midnight Rear Dark or Low   0.25 0.50
Translite Grey 230 Rear Any     0.30 2.30
Translite Grey 160 Rear Any     0.25 1.60
Translite Grey 100 Rear Any     0.40 1.00
Translite Grey 60 Rear Dark or Low   0.30 0.65
Translite Stereo Rear Any   0.13 1.20
Translite Crystal & Translite Clear Rear N/A N/A N/A N/A N/A
Stagelite Contrast Grey 70 Front Any 0.70 N/A
Stagelite White Front Dark or Low 1.00 N/A
Stagelite White/Black Front Dark or Low 1.00 N/A
Stagelite Stereo Front Dark   2.20 N/A


edge finishes

Harkness Screens provide an array of edge finishes for the cinema and event industry enabling a bespoke screen finish for any requirement.

Harkness projection screens are available either off the roll or with a bespoke finish. Depending on requirement, there are a variety of edge finishes.

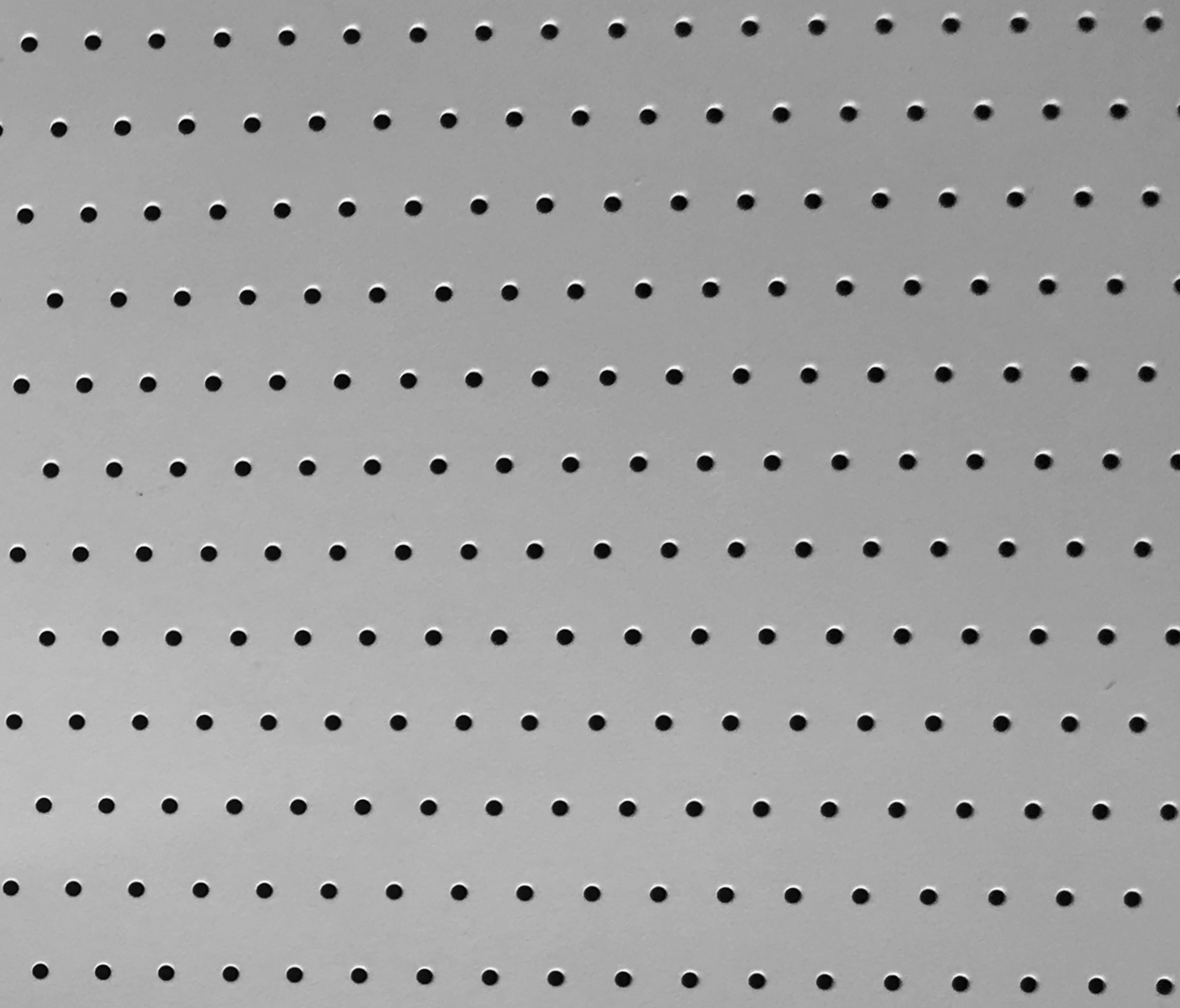

perf pattern.jpg

sound perforations

  Hole Size Open Area Viewing Distance
Digital Perf 0.9mm 4.16% 3.7m (12ft)
Mini Perf 0.5mm 2.36% 1.5m (5ft)


fire certification

Harkness products are formulated with fire resistance in mind. Our screens have been tested to a range of global fire testing regulations, however as methods of testing for reaction to fire vary across the globe, it is important to ensure compliance by testing to the relevant standards as dictated by the country of installation. For further information on the fire certification of our product range please contact us for your requirements.

Harkness is also able to provide small samples for local fire testing should this be required.
